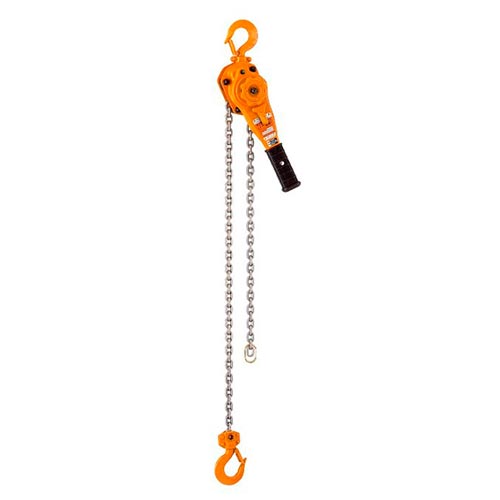

L5 Lever Hoist

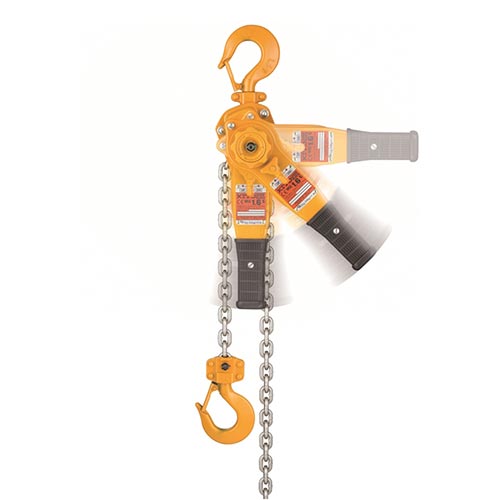

L5 Lever Hoist - Image 2

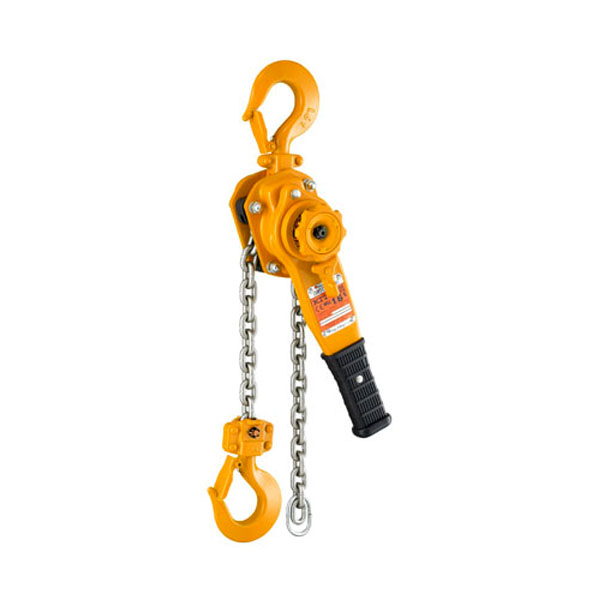

L5 Lever Hoist - Image 3

L5 Lever Hoist

Capacity

800kg – 9T


  • Compact, lightweight high-grade alloy steel frame.
  • Patented “Free Wheeling Hub” for improved functionality.
  • Low headroom design for space-saving.
  • Kito nickel-plated Grade 100 load chain for durability.
  • Double brake pads with four surfaces for added safety.
  • Double pawl springs for extra reliability.
  • Optional overload indication with load signal.
  • Optional shipyard hook for applications involving steel plates.

  • Designed for durability in harsh outdoor or industrial environments, resisting corrosion.
  • Ergonomic design and freewheel mechanism improve operator efficiency and reduce strain.
  • Overload limiter and automatic brake system provide enhanced safety during operation.
  • Suitable for horizontal and vertical lifting, pulling, and tensioning applications.

  • Mining
  • Construction
  • Engineering
  • Entertainment
  • Offshore and Marine
  • Rigging and Assembly
  • Utilities and Power Generation
  • Transportation
  • Shipbuilding
  • Forestry

Australian Standard: AS 1418.2



 Flyer     Full range









Capacity

800kg – 9T
Contact Us

Description

Capacity Part No.
(1.5m Lift)		 Part No.
(3m Lift)		 Headroom
(mm)		 Lever
Length (mm)		 Load Chain
Dia (mm) x fall		 Weight*
(kg)		 Load Chain
Dia x Pitch (mm)		 Load Chain
Part No.
800kg 44202 45890 280 245 5.6 x 1 5.7 5.6×15.7 44278
1 tonne 44203 62575 300 245 5.6 x 1 5.9 5.6×15.7 44278
1.6 tonne 44204 45891 335 265 7.1 x 1 8.0 7.1×19.9 44279
2.5 tonne 44205 61917 375 265 8.8 x 1 11.2 8.8×24.6 44280
3.2 tonne 44206 45892 395 415 10.0 x 1 15.0 10×28.0 44281
6.3 tonne 44207 45893 540 415 10.0 x 2 26.0 10×28.0 44281
9 tonne 44208 61498 680 415 10.0 x 3 40.0 10×28.0 44281
